Saturday, 14 March 2009

PWM & JIO Boards V2 (SR)

[The following post is mirrored from: chris-sr.blogspot.com

It has taken me approximately three days of soldering, de-soldering, and then flashing to get through all of the mods on the JointIO and PWM Boards but now they are all done. This means they will be shipped from Monday of this week onwards. Which leaves the teams with just about enough time to program their robots.

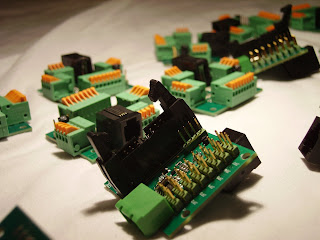

Here is a photo of the individual boards:

JointIO Board



PWM Board



Jointio & PWM Boards
